Calibration Checker

To view the Calibration Checker go to Calibration Checker

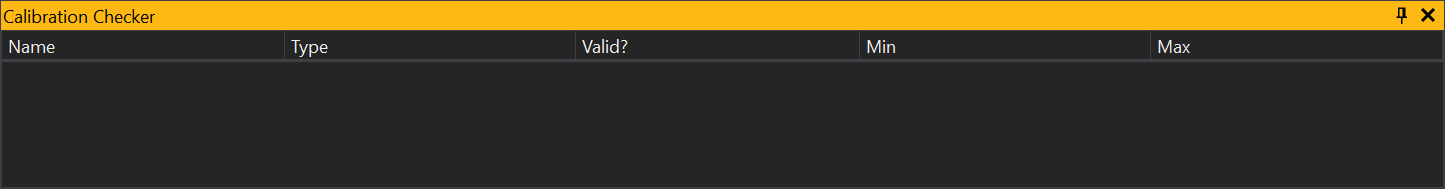

The Calibration Checker compares all values in the current calibration against limits set by the ECU. If a value is changed to be outside these limits, it will be highlighted in the Calibration Checker window:

Calibration Checker Calibration Checker

The Calibration Checker has the following properties which can be accessed through the context menu (right clicking on the Calibration Checker):

  • Hide Valid Names - If yes, this will only show values which have invalid values set. If set to no it will show all values in the current calibration.
  • Popup Invalid - If yes and when the Calibration Checker is hidden, then the Calibration Check will expand to show the invalid values.
