Track Database

Overview

Some Display Module types support a programmable track database. The track database allows the display to automatically select a nearby GPS start/finish line based upon the GPS position.

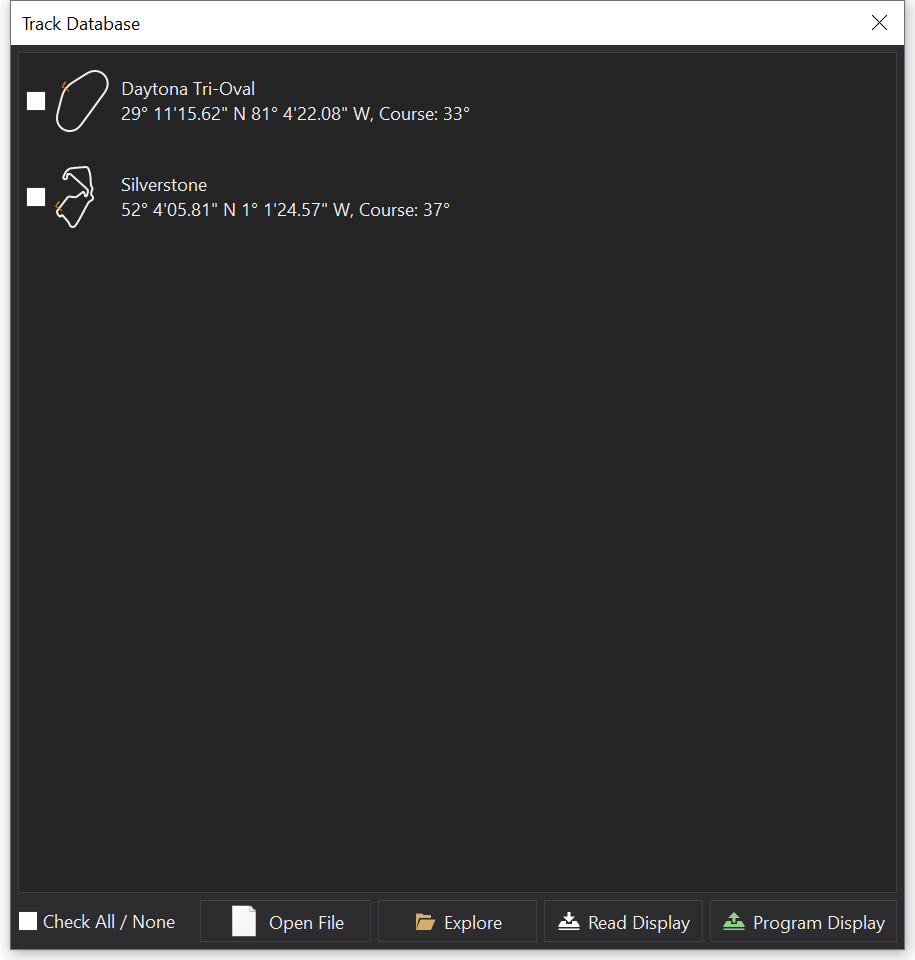

Track Database

A track database can be maintained on the PC. It is a folder containing kml or kmz files called “Tracks” under the Dash Design documents folder.

Click the Explore button on the Track Database dialog to open the folder in Windows® file explorer.

Programming the Display

Select the tracks that you want to program by checking them in the list then click the Program Display button.

Warning

Avoid programming the display with multiple versions of the same track since the Display may not choose the correct version of the track.

Reading from the Display

Use the Read Display button to read the tracks that are currently loaded in the display and update the checked tracks in the track database dialog.

Any tracks that exist in the display that do not exist on disk shall be added to the list (but not added to the Tracks folder).

Defining Tracks

Tracks can be defined either by editing KML files (an XML type format) by hand, or by using an editor such as Google Earth. A zipped KML format is also supported (KMZ).

The KML file should contain a folder with the name of the track. Within this should be a line string with the name “Start/Finish” and may also contain numbered split lines (e.g. Split1 or Split2). At present, only the Start/Finish line is programmed into the display.

The “Start/Finish” and any “Split” lines must have 2 points only. These lines should cross the track perpendicular to the line that the car would take. The direction of the line is 90° clockwise from the first point. So, given a track that is oval and the car is running clockwise around the track, the line would start inside the oval and end outside. If the car was running anti-clockwise then the line would start outside the oval and end inside it.

The track definition may also contain a line string for the track itself called “Track”. This is rendered in the Track Database dialog as a thumbnail and is currently purely for visualization purposes.

For example:

<?xml version="1.0" encoding="UTF-8"?>
<kml xmlns="http://www.opengis.net/kml/2.2" xmlns:gx="http://www.google.com/kml/ext/2.2" xmlns:kml="http://www.opengis.net/kml/2.2" xmlns:atom="http://www.w3.org/2005/Atom">
<Document>
    <name>Silverstone.kmz</name>
    <Folder>
        <name>Silverstone</name>
        <Placemark>
            <name>Start/Finish</name>
            <LineString>
                <tessellate>1</tessellate>
                <coordinates>
                    -1.023222302590363,52.06815679907218,0 -1.023762259441994,52.06840339462266,0
                </coordinates>
            </LineString>
        </Placemark>
        <Placemark>
            <name>Track</name>
            <LineString>
                <tessellate>1</tessellate>
                <coordinates>
                    -1.023457440705252,52.06826330469951,0 -1.022211981150893,52.06926392138978,0 -1.020120716246536,52.07094945894832,0 -1.019798435446819,52.07119895390668,0 -1.019601119519132,52.07126226540072,0 -1.01937873321533,52.07130387583826,0 -1.019151596800913,52.07132015409328,0 -1.018864704792763,52.07132699524943,0 -1.018571326775504,52.07130765223916,0 -1.018287746835613,52.07128456546694,0 -1.017245837241402,52.07119202674222,0 -1.016972301678272,52.07118239377338,0 -1.016710355235815,52.07119694839953,0 -1.016431744521955,52.07122766516974,0 -1.016139377047914,52.07129194838007,0 -1.015890779969542,52.07137482110704,0 -1.015660378114936,52.07146988771898,0 -1.015329365246891,52.07163540796481,0 -1.014912384781105,52.07184482607399,0 -1.014278792857228,52.07215527769836,0 -1.013875376200518,52.07235236448024,0 -1.013618131981842,52.07247620811879,0 -1.013447409552678,52.07251877034994,0 -1.013319975021001,52.07252522993891,0 -1.013184409430378,52.07250628693589,0 -1.01310077472047,52.07246933328934,0 -1.013033850291631,52.07241324861703,0 -1.012978908879991,52.07235209663881,0 -1.012860470987238,52.07212659337567,0 -1.012577418468494,52.07155200071375,0 -1.012521435811164,52.0714882955801,0 -1.01241641133345,52.07143118406936,0 -1.012296608528234,52.07139858475865,0 -1.012165632134893,52.0713992211664,0 -1.012040161907365,52.07143360936539,0 -1.011947625906483,52.07150255189591,0 -1.011843568280048,52.07161602819282,0 -1.011690025087647,52.07186487421092,0 -1.011546321340735,52.0721562329888,0 -1.011430985337407,52.07252893286008,0 -1.011401929202499,52.07290108966808,0 -1.011419609454781,52.07302600696883,0 -1.011458558599511,52.07307834034388,0 -1.011508853351684,52.07311677085882,0 -1.011745977479267,52.07324596402563,0 -1.012380629940351,52.0736254031531,0 -1.013196080280964,52.07408080117892,0 -1.01447343285189,52.07480129681431,0 -1.015659863767252,52.07545649600331,0 -1.018450323972536,52.07699568325367,0 -1.018628666371085,52.07707198799071,0 -1.018852364896329,52.0771302583529,0 -1.019139998237194,52.07715507260878,0 -1.019425637860738,52.07713550285217,0 -1.019717685896793,52.07707442375945,0 -1.019717838927831,52.07707159871079,0 -1.019875432474793,52.07700612118002,0 -1.019974638263597,52.0768873138033,0 -1.020021797462273,52.0767578285128,0 -1.020048264359766,52.07651102214933,0 -1.020115356756105,52.07616091012261,0 -1.020218197163085,52.07602511655598,0 -1.02037330652471,52.07591751384516,0 -1.020577851231113,52.07584315361245,0 -1.020827875515469,52.07580418109799,0 -1.021072945038164,52.07581683210579,0 -1.021301749328888,52.07587772966747,0 -1.021505454046772,52.07598109362632,0 -1.02161258467528,52.07610917315833,0 -1.021652404108211,52.07627270721889,0 -1.021590593993534,52.07647689871101,0 -1.021286511375399,52.07685291248266,0 -1.020652373384661,52.0776370848383,0 -1.02041866101886,52.07781871987165,0 -1.020092038113648,52.07803677596841,0 -1.019717807773661,52.07824558471947,0 -1.019305157925989,52.07842379851116,0 -1.018942220901495,52.07852426096748,0 -1.018474214581038,52.07859650614207,0 -1.018218625788347,52.07861972841747,0 -1.016822932764364,52.07871116772316,0 -1.015215962508181,52.07880785609512,0 -1.012305414454012,52.07894242003761,0 -1.012069324934228,52.07892135838949,0 -1.011812287263301,52.07886274393292,0 -1.011544712985256,52.07876463011411,0 -1.011325781872238,52.07862751294066,0 -1.011189887559795,52.07849677966099,0 -1.011072443810749,52.07833352502246,0 -1.010878355938465,52.0779797545011,0 -1.010579382179875,52.07732122547742,0 -1.010420235949071,52.07681709510778,0 -1.01035845420526,52.07654002030849,0 -1.010306317114715,52.07626143166188,0 -1.010247579099783,52.07547762183768,0 -1.010200584898043,52.07487666001721,0 -1.010162668030518,52.07448340195425,0 -1.010126731347698,52.07432607886552,0 -1.010033011909288,52.07414893753801,0 -1.009922028249696,52.07398318913559,0 -1.009795759633373,52.07383671627831,0 -1.009619975065831,52.07367883801017,0 -1.009530466507066,52.07356252451558,0 -1.009493134815458,52.07345076484788,0 -1.009497819412188,52.07331725306135,0 -1.009600570681212,52.07308949360063,0 -1.009956518897663,52.07250080776188,0 -1.010017906032059,52.07234566981564,0 -1.01005532854137,52.07215915683623,0 -1.010046873519478,52.07202014893785,0 -1.009999523437812,52.07188024257708,0 -1.009907535127204,52.07176183639039,0 -1.009761495978749,52.07162751386204,0 -1.009358756794367,52.07128628849334,0 -1.00927500235878,52.07114744259604,0 -1.009246400994753,52.0709824561481,0 -1.009275912175003,52.07082781736657,0 -1.009352308809192,52.07069700058285,0 -1.009499838955851,52.07057072481957,0 -1.009668846635452,52.07047544926077,0 -1.009968824890688,52.07034941323089,0 -1.010703847512975,52.07007364808247,0 -1.010954790396897,52.06995193270534,0 -1.011134893382093,52.06982333480508,0 -1.0112802301664,52.06968308883275,0 -1.011487348312824,52.06945911629902,0 -1.011875581776741,52.06903082544272,0 -1.012435485276765,52.06839581531909,0 -1.013189644512745,52.06750948640506,0 -1.013190034239836,52.06750682049438,0 -1.013924670314729,52.06665196188685,0 -1.01518018343172,52.0652240028476,0 -1.015697144843778,52.06470434768345,0 -1.016297065716387,52.06416946728359,0 -1.016714998499388,52.0638115998371,0 -1.016916639133029,52.06369105032819,0 -1.01714504851143,52.06360779571828,0 -1.017463999886501,52.06354588523977,0 -1.017741099362506,52.06352117067455,0 -1.018047136012797,52.06354825699662,0 -1.018357949625235,52.06362366830372,0 -1.018585977361718,52.06372282489181,0 -1.018757838580764,52.06383139030437,0 -1.018919530710179,52.06401319695608,0 -1.019193793181883,52.06437476749688,0 -1.019342576765286,52.06454665058445,0 -1.019560414927535,52.0647570737635,0 -1.019851113106613,52.06500979059036,0 -1.020118485426937,52.06522933960495,0 -1.020319327321483,52.06536183072669,0 -1.021904687305164,52.06646707823193,0 -1.022006167024642,52.06652923634018,0 -1.022116718992182,52.06655390448029,0 -1.022226148969702,52.0665544164719,0 -1.022344063359594,52.06651762944266,0 -1.022467285354731,52.0664455046743,0 -1.022688100572002,52.06631291707106,0 -1.02282674096245,52.06625648403141,0 -1.022978555415159,52.06622992489552,0 -1.023122296152442,52.06623924680579,0 -1.023275486178706,52.06628604660686,0 -1.023422360881027,52.06636991413968,0 -1.023712831963494,52.06657146267329,0 -1.023954639926107,52.0667937231116,0 -1.024130329955542,52.06704852450726,0 -1.024270181387696,52.06738531174683,0 -1.024289040661949,52.06750594128725,0 -1.024261330339462,52.06759304219368,0 -1.024189871725516,52.067666168009,0 -1.024025725032678,52.06779026751038,0 -1.023457440705252,52.06826330469951,0
                </coordinates>
            </LineString>
        </Placemark>
    </Folder>
</Document>
</kml>
