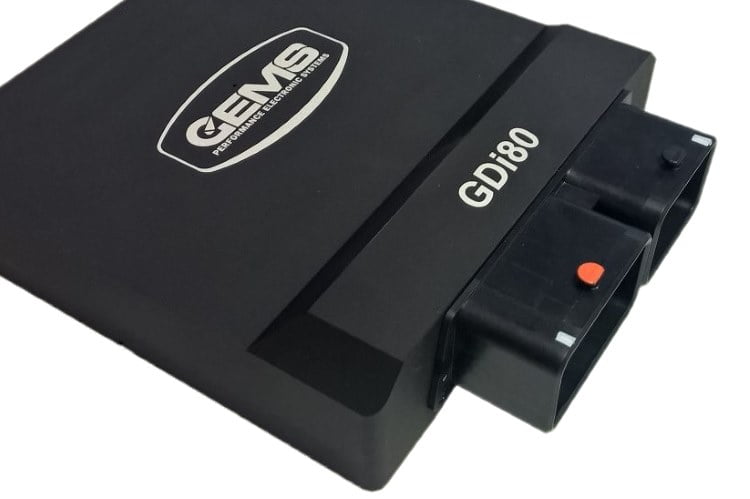

GDi80
4 Cylinder DIRECT INJECTION ENGINE MANAGEMENT
The GDi80 is an advanced engine management system for direct injection engines for up to 4 cylinders. Features include active throttle control, wideband lambda, gear shift control, high speed data logging with a large data logging memory capacity of 256 MBytes and high speed ethernet comms.
Features
- Fully configurable with GWv4 software (sold seperately)
- Can drive DI or standard injectors
- High speed data logging
- Gearshift control
- Active throttle control
- Closed loop wideband lambda control
- Drive by wire throttle control
- Turbo wastegate control
- Uneven firing angles
- Multiple fuel, ignition, vvc tables
- Up to 8 calibration combinations for fuel, ALS, launch etc
- Compact and lightweight
Specifications
- 4 Direct injection drivers
- 4 Ignition coil drivers
- 4 PWM H-bridges
- 8 PWM Low side drivers
- 22 Analogue inputs*
- 2 Differential analogue inputs
- 8 Timing Inputs*
- Wideband lambda input (LSU4.2 or 4.9 software selectable)
- 256Mbyte internal logging memory
- Internal 3-axis G-sensor and yaw
- Internal Barometric sensor
- 2 CAN2.0 bus
- Ethernet PC communications
- Anodised aluminium case sealed against water & dust ingress
- Size (including connector): 159x131x35mm (6.26×5.16×1.38″)
- Weight: 456g (1.01lbs)
*Some inputs are dual use: 6 analogues are shared with speed inputs, 4 shared with PWM outputs
