PM2
CENTRAL CONTROL UNIT FOR PM1 NETWORK
The PM2 unit is used to manage a system of PM1 units. It can take inputs from switches and keypads then passes instructions through to the PM1 units, using a user defined strategy of events and timers.

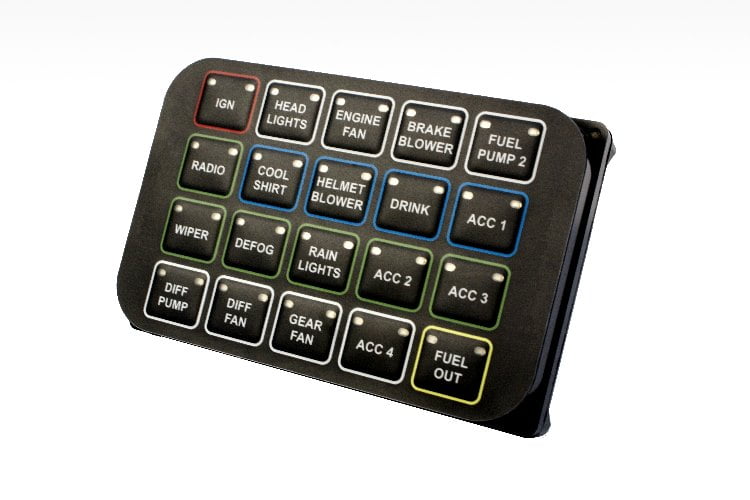

The PM2 can also be configured with an integrated keypad, with a standard or you own customised design.
Features
- User configurable control strategy
- Up to 25 keypads or switch inputs using 5 x 5 matrix
- Overall current monitoring with master switch trip on excess current
- Master switch control
Specifications
- Master relay driver output
- 12 LED Drivers
- 10 Switch/keypad inputs (matrixed to 25)
- 8 standard switch inputs
- Override switch input
- 2 x CAN 2.0, 1 x RS232 Serial
