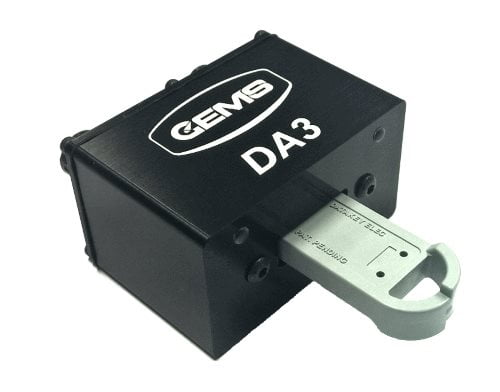

DA3

COMPACT 4GB DATA LOGGER WITH ANALOGUE INPUTS

The DA3 provides a huge amount of logging memory, needed for modern application, and compacts the specifications into a miniature unit, taking up the least amount of space and weight in the host vehicle.

The DA3 uses the latest memory-stick technology which is both flexible and rugged, making it the perfect product for motorsport, aviation and other demanding environments

Now available for use with Simulink®

Features

  • Removable data-key memory
  • Supplied with 4Gbyte memory key
  • Compact Size
  • Logging speeds up to 1KHz
  • Total logging through-put 100Kbyte+ per second
  • CAN and Serial Recording
  • Analogue, speed and thermocouple inputs
  • Fully configurable with GEMS Data Analysis Software

Specifications

  • 8 x Analogue Inputs (4 can be used as speeds, 4 as thermocouples)
  • 2 x CAN2.0
  • 1 x Serial RS232
  • Beacon Input
  • 2 x Tri-colour diagnostic LEDs
  • Size: 56 x 38 x 32 mm (2.2″ x 1.5″ x 1.3″)
  • Weight: 110g (with memory key)
