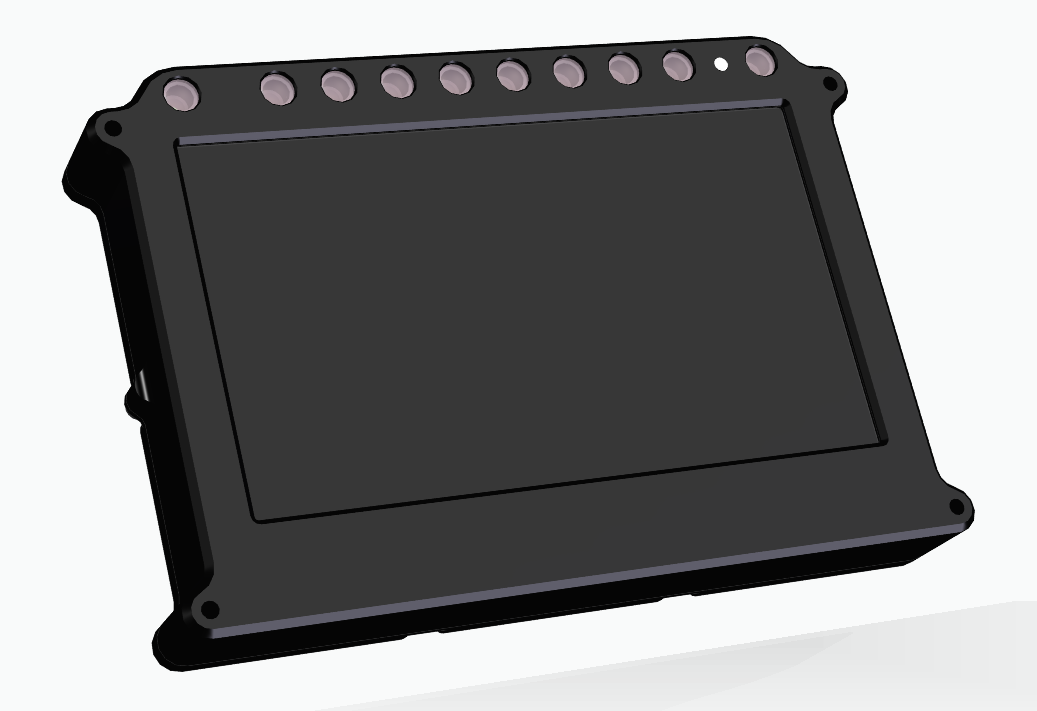

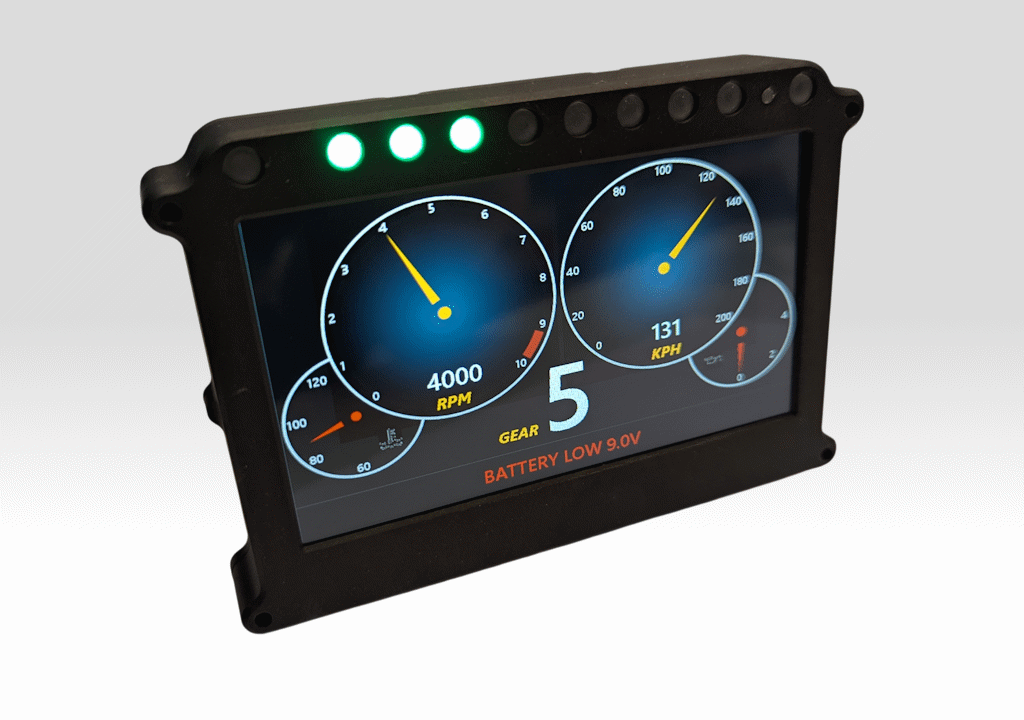

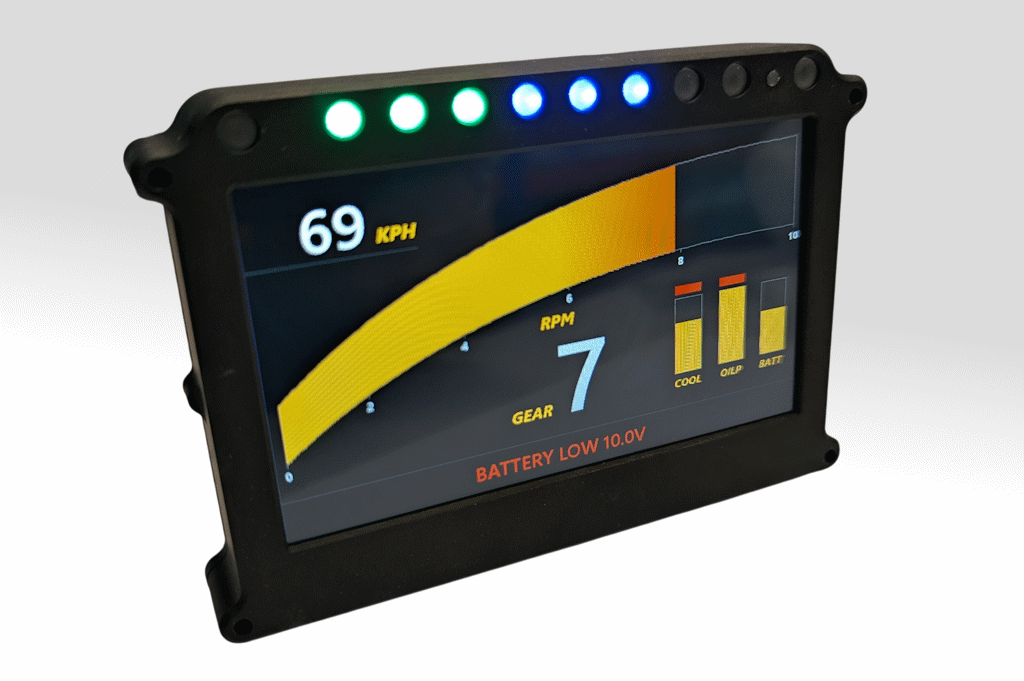

CD6-43 / CD6-50

GEMS NEXT GENERATION OF COMPACT, LIGHTWEIGHT COLOUR DISPLAY

Coming Soon! Contact us for more details.

A fully configurable driver dash-display using high brightness, high resolution IPS LED Backlit TFT display. Available with 4.3 and 5.0 inch screen options.

Features

  • Ultra clear, high resolution IPS TFT display technology
  • Viewable in direct sunlight
  • Anti-reflective filter
  • Fully customisable with What You See Is What
    You Get (WYSIWYG) Windows© editing software
  • Boots in less than one second
  • 100+ pages selectable by input pot or CAN
  • 16 Gauge types inc: Bar Tacho, Rev Lights, Variable text
  • Beacon input for lap timing
  • High speed Internal Data-logging, up to 1kHz per channel
  • Internal supply monitoring, temperature sensors & real time clock
  • 6 axis G-sensor / accelerometer
  • Ambient Light Sensor
  • 2 Camera Inputs

Specifications

  • Screen: 800×480 pixel resolution, true colour, 800 cd/m2, 1000:1 contrast ration
  • 4 Speed inputs, 7 Analogue inputs
  • 2 Button Inputs, 1 Beacon Input
  • 2 SDTV CVBS (Composite) camera inputs
  • 256MByte data-logging memory
  • CAN2.0 FD & Serial communications
  • Ethernet / USB2.0 for programming / log downloads
  • Size: TBC
  • Weight: TBC
