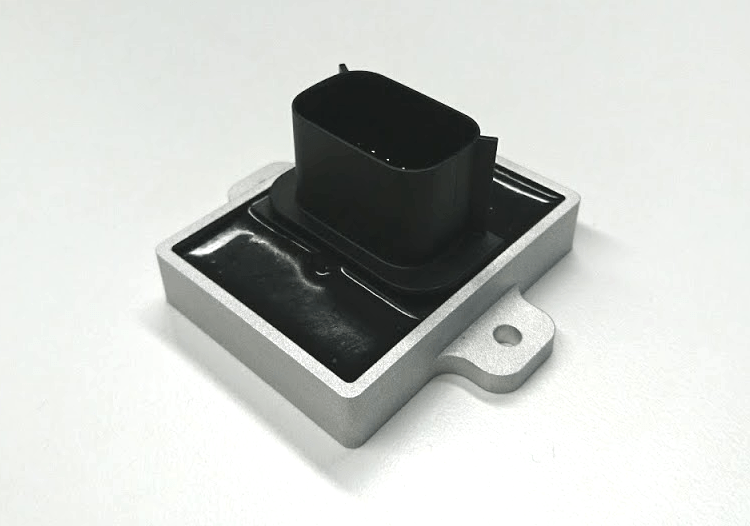

ID4

4 Channel ignition coil driver with current reporting

This compact unit provides driven coil functionality to systems that do not have the option built in. It can be used with any ECU model.

Features

  • Compact size
  • Current reporting

Specifications

  • 4 x 0-5V Signal inputs
  • 4 x Coil drivers for break current up to 15A
  • 2 x Current feedback outputs (100mV per Amp @ 4K7 Ohms)
  • Molex 12pin sealed connector
  • Size: 55 x 62 x 31 mm
  • Weight: ≈ 60g
