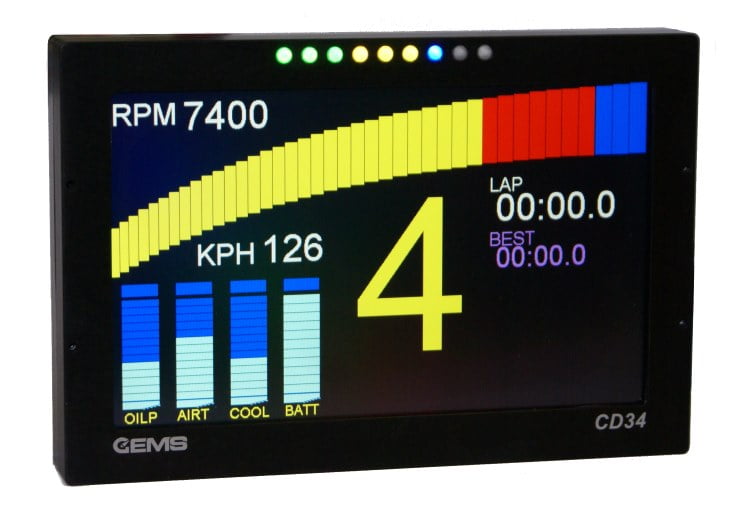

CD34
8IN WIDESCREEN ADVANCED DASH DISPLAY
The CD34 is the pinnacle of autosport display sytems, giving unrivaled control over your data and with our largest TFT screen ever, your driver/co-driver will never have seen clearer information.
Features
- Full colour 8 inch LED backlit widescreen TFT display
- 9 tri-colour configurable shift lights
- Internal Data-logging
- 100 pages selectable by input pot or CAN
- What You See Is What You Get (WYSIWYG) Windows© editing software
- 32K Information backup memory
- Co-Driver pulse counter and button inputs
- Display bitmaps for company or sponsors logos
- CAN Transmit – Relay calculated data or control slave display
- Mathematical manipulation of monitored data
- 16 Gauge types inc: Bar Tacho, Rev Lights, Variable text
- Time, distance and fuel trip meters
- Display min, max and average of any data
Specifications
- 12* Analogue inputs with software selectable pull ups
- 4 Speed inputs
- 7 sensor power supply lines (4 software selectable between 5 and 12V)
- 1 Thermocouple input
- 5 Light drivers
- 4 Button Inputs
- 200Mbyte data-logging memory
- Upload and download via USB
- 50Mbyte Storage for Setup
- Screen: 800×480 pixel resolution and 262,000 colours
Screen viewable area: 174x104mm - Main Connector: 55pin AS connector
- Power consumption at 12V: <0.6A
- Size: 204 x 136.5 x 27mm (excluding connector)
- Weight: 650g
