Screens Tab

Overview

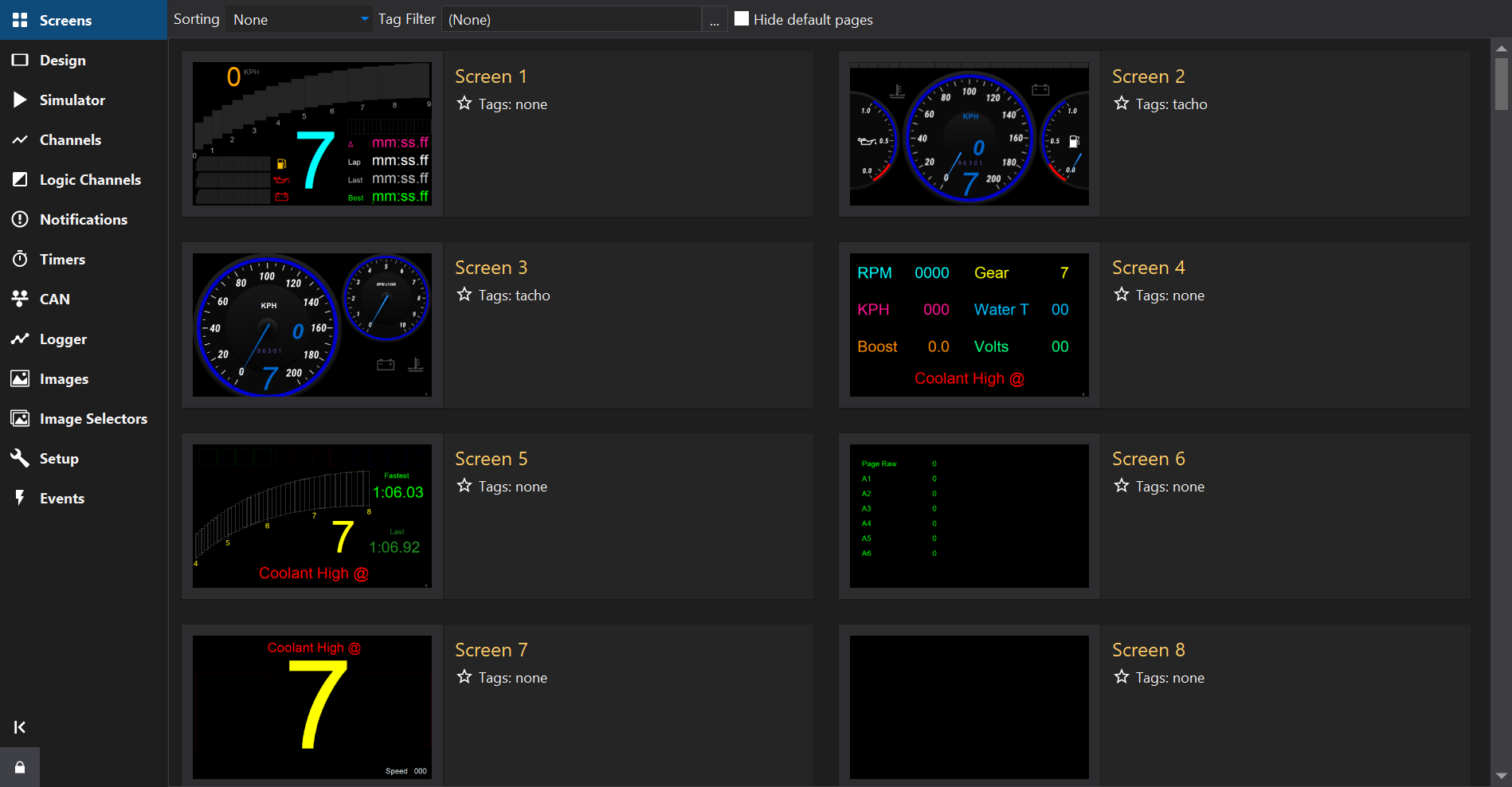

The Screens Tab shows an overview of all the screens in the display setup.

Double click on a screen to enter Design Tab for that screen.

Screens can be sorted by page number (the default) or alphabetically by name.

Screens may be given a name by setting the ‘Name’ property on the Design Tab .

If screens have been assigned tags, then they may be filtered based upon tag.

Screens may be assigned tags via th ‘Tags’ property on the Design Tab .

If checked, ‘Hide default pages’ will hide any screens that have not been configured yet.

The context menu (Right-Click) for each screen offers the option to import / export the screen from / to a file.

This facilitates building a library of screens for sharing between display setups.

Screen library files have the file extension .gddscreen.

Screens may be duplicated onto another screen to facilitate designing similar screens.

Resets the screen back to a blank page.

Screens may be disabled so that they do not show when running on the Display Module. Disabled screens are shown with a grey effect.
