Images Tab

Overview

The Images Tab provides management of image assets used by page designs (see Design Tab ).

Timers Tab Timers Tab

Image Properties

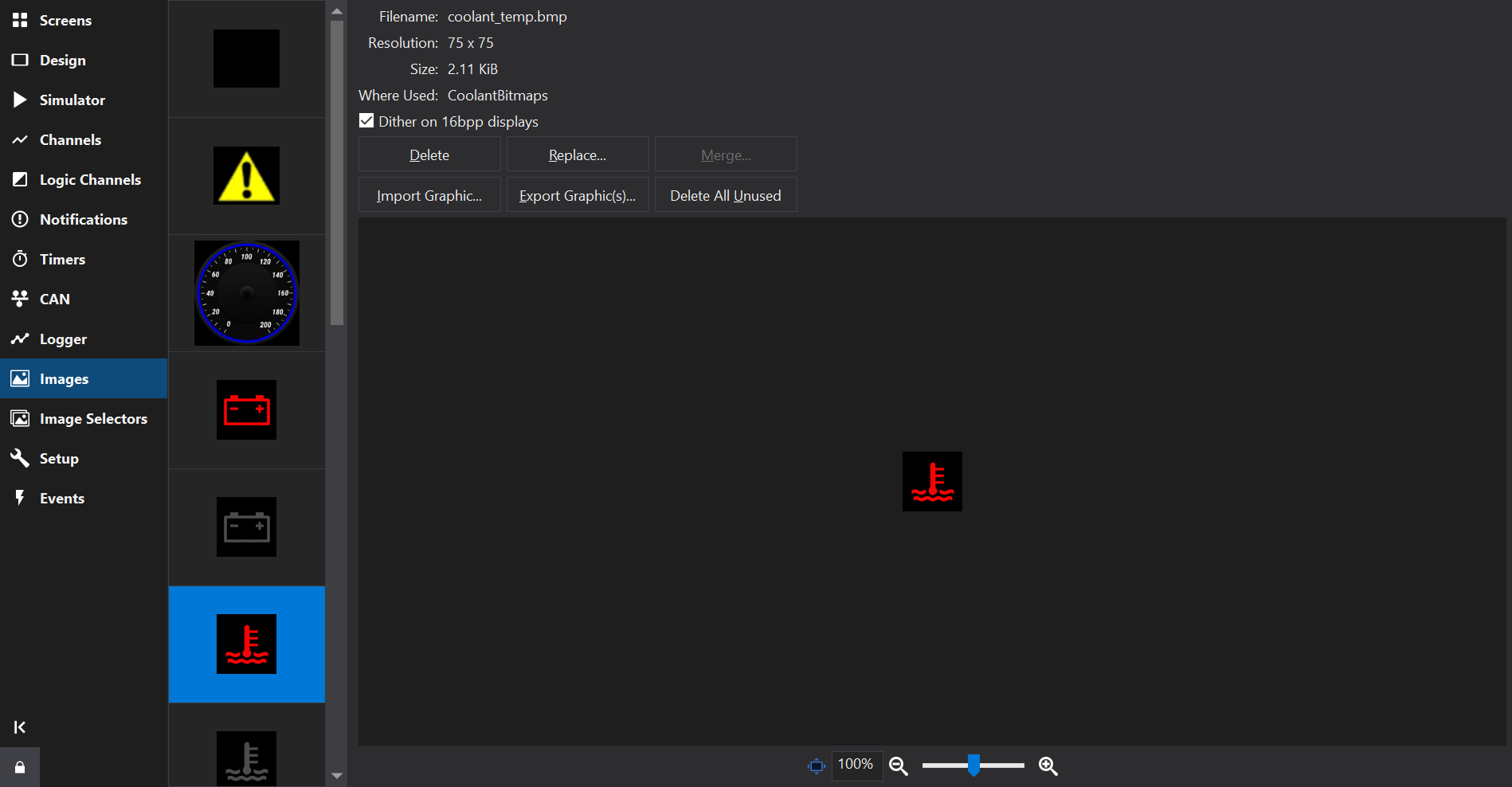

Selecting an image in the list on the left hand side will show the image full-size on the right, along with some additional information:

  • Filename: The original path of the image
  • Resolution: The size, in pixels of the image (Width x Height)
  • Size: The size of the image. This can be useful if optimizing the size of display setups.
  • Where Used: Shows which screens/pages are using the image.

Image Functions

  • Delete: Delete the selected image
  • Replace: Re-load an image in-place of the selected image. This will update any references to the image on any screens/pages it is used by.
  • Merge: If multiple images are selected then all references can be updated to use just one of them. From the popup, select which image should be kept.
  • Import Graphic: Add a new image to the list of image assets. This is also possible via in-place gauge editing on the Design Tab .
  • Export Graphic: Save the image to a separate file on disk.
  • Delete All Unused: Deletes any images that are not referenced. This will reduce setup file size and lead to faster programming and improved performance on the display.
