Toggle Channel
Overview
Toggle Channels switch between 0 and 1 when a toggle event is received.
For example, it can be used to toggle the display between operating in MPH and KPH in response to a button push.

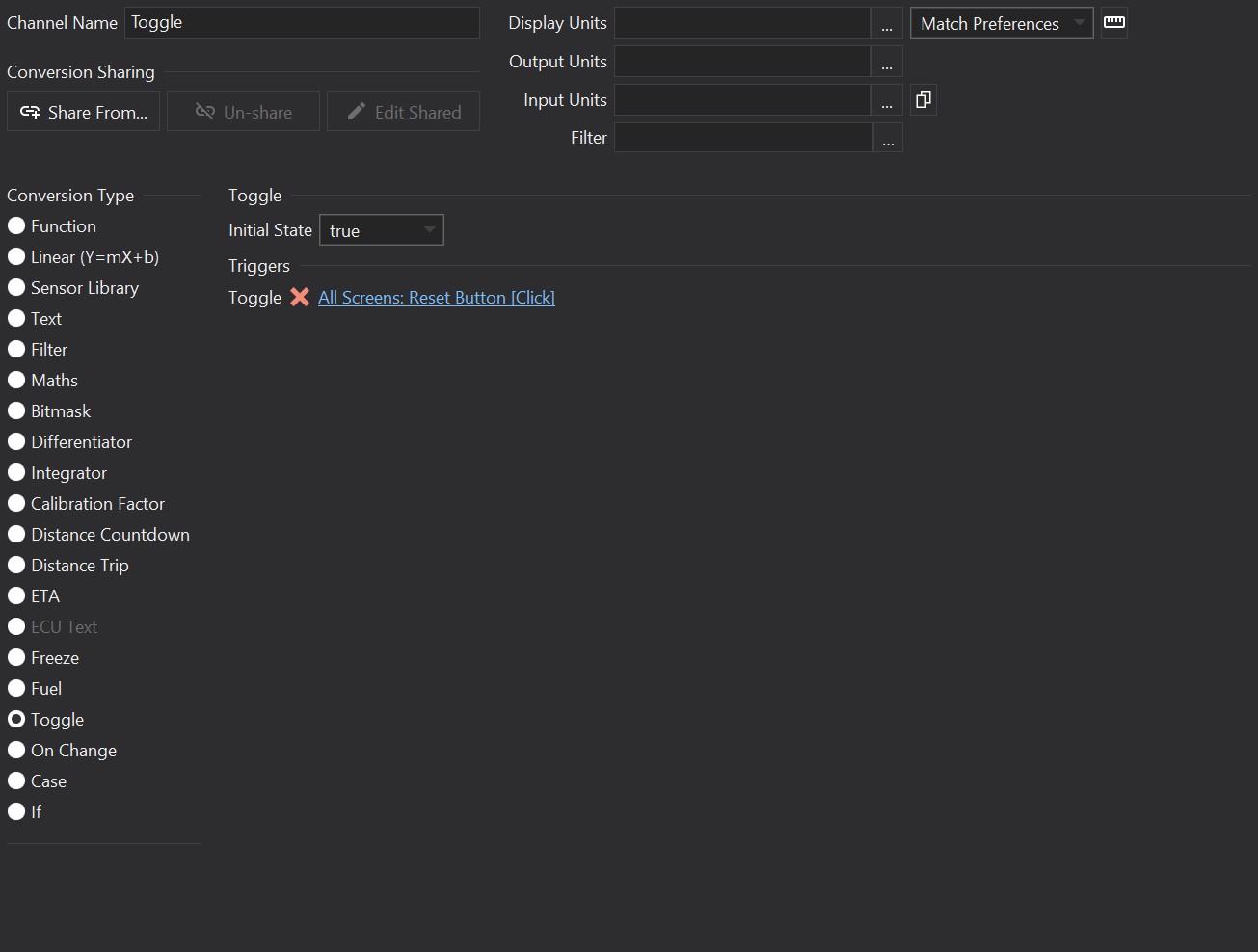

Options
Initial State
The initial output value of the channel before any toggle events have been received.
Triggers
Toggle
Click on the link to select an event that should cause the Toggle Channel to change state.
Supported By Displays
| Display | Supported? |
|---|---|
| CD34 | Yes |
| LDS4 | Yes |
| CD32 | Yes |
| LDS35 | Yes |
| LDS35_L | Yes |
| CD6-43 | Yes |
| GLW-43 | Yes |
